Isokinetic Flyash Sampling Kit

How can you evaluate flyash distribution between your different flue gas ducts?

  • Design to collect a flyash sample

  • Aluminum body for light weight and usability

  • 304 stainless steel canister head

power plant performance testing

A flyash sampler provides the means to draw ash samples from the flue gas. STORM fabricates two types of samplers, one is an In-Situ Flyash Sampler which is a “near isokinetic” sampler, and the other is an Isokinetic Sampler. Although we recommend the In-Situ Flyash Sampler for boiler tuning and periodic testing, sometimes an Isokinetic Flyash Sampler is required. This equipment is generally utilized for ASME PTC 4.0 boiler efficiency tests.

STORM utilizes Isokinetic flyash sampling to quantify a relative mass flowrate of the flyash at various locations in the back pass and for the extraction of a more representative samples for analysis. This probe uses a three-hole “Fecheimer” head to measure velocity pressure and an “in-line” calibrated square-edged orifice to maintain the required sampling velocities based off the real time flow measurement during testing. Performing flyash sampling isokinetically requires the velocity head at each point to be measured so the sample is pulled at an identical rate. Both the velocity and flyash sample are collected, simultaneously. This also allows the test team to determine the direction of flow streams so that the sample tip is pointed into the flow during the sample traverse.

Kit Includes:

  • Sample Canister
  • Perforated Cylinder
  • Aspirator
  • Nozzle Tip
  • Flow Monitor Tubing
  • Aluminum Probe Body  (Normally 10ft)
  • Filter Paper (50 Sheets, not shown)
  • Magnehelic Gauge Panel
  • Flexible Tubing

Note: Items in these kits can be purchased separately

Testing Locations

power plant performance testing

Air Heater (Gas) Inlet

(High Temp. Filter Paper Req'd)

Air Heater (Gas) Outlet

(Low Temp. Filter Paper Req'd)

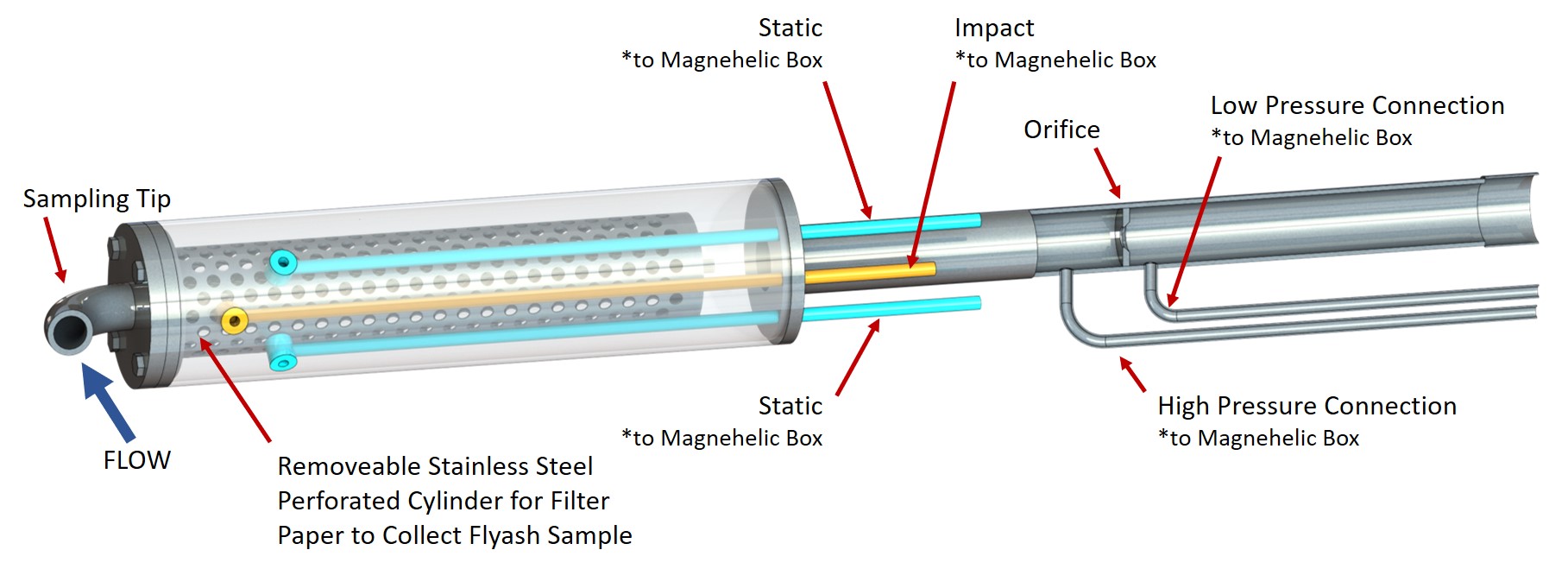

Probe Overview

Other Required Equipment for Testing:

  • Filter Paper
    • Low Temperature good to 900°F
    • High Temperature required above 900°F
  • Sample Bags
  • 1/2″ – 3/4″ Air Hose
